Turning kinect skeleton bones into capsule shapes hemesh kinectpv2

Processing Coding Questions
1

Hi, I am using the kinectpv2 library and hemesh library to just do something basic before moving on to what I actually want to do. I have altered the skeleton depth tracking example from kinectpv2 to try to draw capsules in place of the bones. as you see in my sketch, I added the code into the drawBone function but my capsules come out all facing forward and not being rotated into the place of the bone. I am unsure how to proceed and could use some help. I think I mainly need to rotate the capsule into place but unsure what the angle would be or how to find that. thanks for any help…

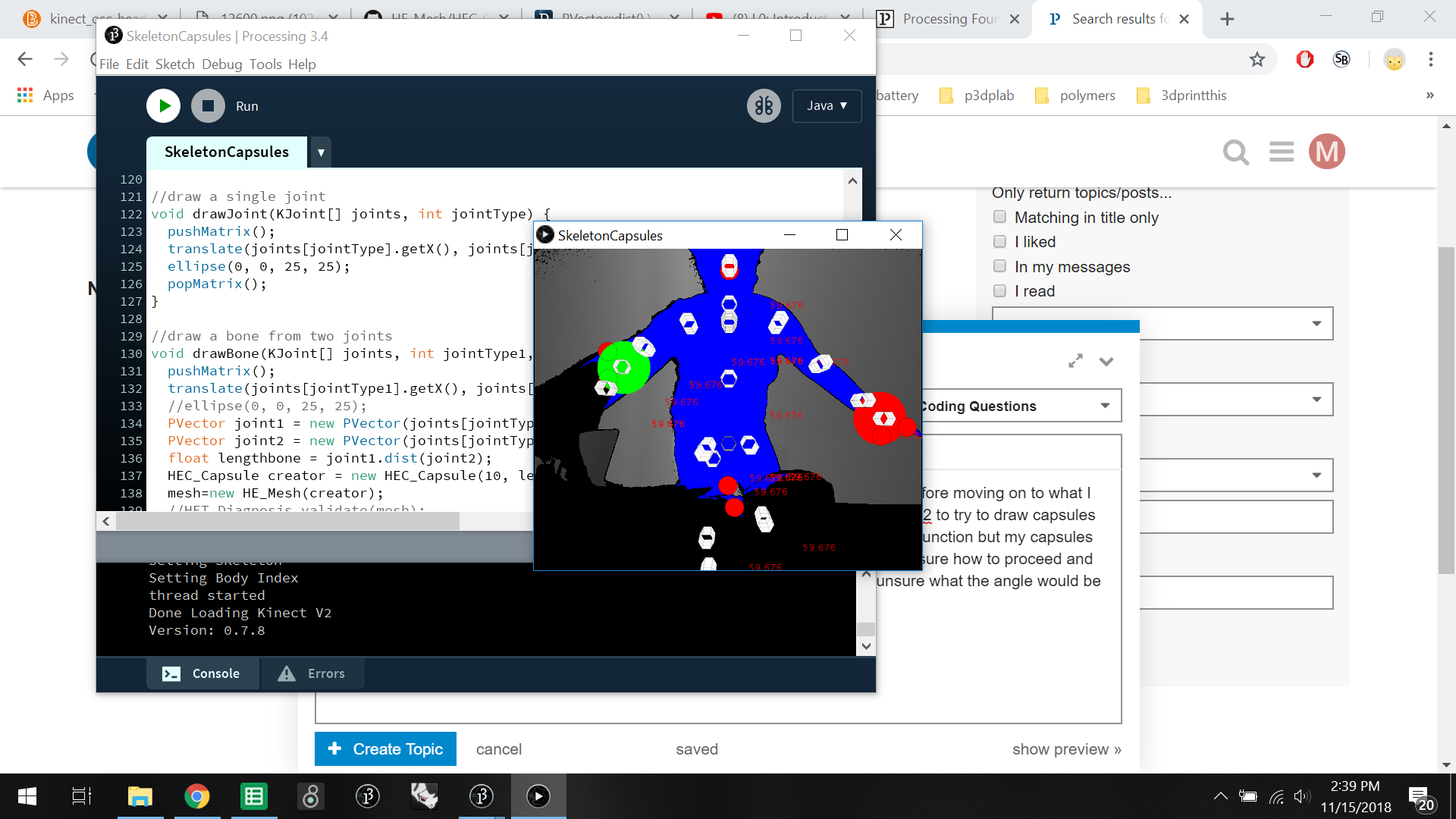

here is the result i am getting now:

image1920×1080 417 KB

and here is my code:


import java.util.ArrayList;
import KinectPV2.KJoint;
import KinectPV2.*;

import wblut.math.*;
import wblut.processing.*;
import wblut.core.*;
import wblut.hemesh.*;
import wblut.geom.*;

KinectPV2 kinect;

HE_Mesh mesh;
WB_Render render;


void setup() {
  size(512, 424, P3D);

  kinect = new KinectPV2(this);

  //Enables depth and Body tracking (mask image)
  kinect.enableDepthMaskImg(true);
  kinect.enableSkeletonDepthMap(true);
  //createMesh();
  //render=new WB_Render(this);

  kinect.init();
}

void draw() {
  background(0);

  image(kinect.getDepthMaskImage(), 0, 0);

  //get the skeletons as an Arraylist of KSkeletons
  ArrayList<KSkeleton> skeletonArray =  kinect.getSkeletonDepthMap();

  //individual joints
  for (int i = 0; i < skeletonArray.size(); i++) {
    KSkeleton skeleton = (KSkeleton) skeletonArray.get(i);
    //if the skeleton is being tracked compute the skleton joints
    if (skeleton.isTracked()) {
      KJoint[] joints = skeleton.getJoints();

      color col  = skeleton.getIndexColor();
      fill(col);
      stroke(col);

      drawBody(joints);
      drawHandState(joints[KinectPV2.JointType_HandRight]);
      drawHandState(joints[KinectPV2.JointType_HandLeft]);
    }
  }
//fill(255);
//  noStroke();
//  render.drawFaces(mesh);
//  noFill();
//  stroke(0, 50);
//  render.drawEdges(mesh);
//  fill(255, 0, 0);
//  text(frameRate, 50, 50);
}

//draw the body
void drawBody(KJoint[] joints) {
  drawBone(joints, KinectPV2.JointType_Head, KinectPV2.JointType_Neck);
  drawBone(joints, KinectPV2.JointType_Neck, KinectPV2.JointType_SpineShoulder);
  drawBone(joints, KinectPV2.JointType_SpineShoulder, KinectPV2.JointType_SpineMid);
  drawBone(joints, KinectPV2.JointType_SpineMid, KinectPV2.JointType_SpineBase);
  drawBone(joints, KinectPV2.JointType_SpineShoulder, KinectPV2.JointType_ShoulderRight);
  drawBone(joints, KinectPV2.JointType_SpineShoulder, KinectPV2.JointType_ShoulderLeft);
  drawBone(joints, KinectPV2.JointType_SpineBase, KinectPV2.JointType_HipRight);
  drawBone(joints, KinectPV2.JointType_SpineBase, KinectPV2.JointType_HipLeft);

  // Right Arm
  drawBone(joints, KinectPV2.JointType_ShoulderRight, KinectPV2.JointType_ElbowRight);
  drawBone(joints, KinectPV2.JointType_ElbowRight, KinectPV2.JointType_WristRight);
  drawBone(joints, KinectPV2.JointType_WristRight, KinectPV2.JointType_HandRight);
  drawBone(joints, KinectPV2.JointType_HandRight, KinectPV2.JointType_HandTipRight);
  drawBone(joints, KinectPV2.JointType_WristRight, KinectPV2.JointType_ThumbRight);

  // Left Arm
  drawBone(joints, KinectPV2.JointType_ShoulderLeft, KinectPV2.JointType_ElbowLeft);
  drawBone(joints, KinectPV2.JointType_ElbowLeft, KinectPV2.JointType_WristLeft);
  drawBone(joints, KinectPV2.JointType_WristLeft, KinectPV2.JointType_HandLeft);
  drawBone(joints, KinectPV2.JointType_HandLeft, KinectPV2.JointType_HandTipLeft);
  drawBone(joints, KinectPV2.JointType_WristLeft, KinectPV2.JointType_ThumbLeft);

  // Right Leg
  drawBone(joints, KinectPV2.JointType_HipRight, KinectPV2.JointType_KneeRight);
  drawBone(joints, KinectPV2.JointType_KneeRight, KinectPV2.JointType_AnkleRight);
  drawBone(joints, KinectPV2.JointType_AnkleRight, KinectPV2.JointType_FootRight);

  // Left Leg
  drawBone(joints, KinectPV2.JointType_HipLeft, KinectPV2.JointType_KneeLeft);
  drawBone(joints, KinectPV2.JointType_KneeLeft, KinectPV2.JointType_AnkleLeft);
  drawBone(joints, KinectPV2.JointType_AnkleLeft, KinectPV2.JointType_FootLeft);

  //Single joints
  drawJoint(joints, KinectPV2.JointType_HandTipLeft);
  drawJoint(joints, KinectPV2.JointType_HandTipRight);
  drawJoint(joints, KinectPV2.JointType_FootLeft);
  drawJoint(joints, KinectPV2.JointType_FootRight);

  drawJoint(joints, KinectPV2.JointType_ThumbLeft);
  drawJoint(joints, KinectPV2.JointType_ThumbRight);

  drawJoint(joints, KinectPV2.JointType_Head);
}

//draw a single joint
void drawJoint(KJoint[] joints, int jointType) {
  pushMatrix();
  translate(joints[jointType].getX(), joints[jointType].getY(), joints[jointType].getZ());
  ellipse(0, 0, 25, 25);
  popMatrix();
}

//draw a bone from two joints
void drawBone(KJoint[] joints, int jointType1, int jointType2) {
  pushMatrix();
  translate(joints[jointType1].getX(), joints[jointType1].getY(), joints[jointType1].getZ());
  //ellipse(0, 0, 25, 25);
  PVector joint1 = new PVector(joints[jointType1].getX(), joints[jointType1].getY(), joints[jointType1].getZ());
  PVector joint2 = new PVector(joints[jointType2].getX(), joints[jointType2].getY(), joints[jointType2].getZ());
  float lengthbone = joint1.dist(joint2);
  HEC_Capsule creator = new HEC_Capsule(10, lengthbone, 6, 6,3);
  mesh=new HE_Mesh(creator);
  //HET_Diagnosis.validate(mesh);
  render=new WB_Render(this);
  fill(255);
  noStroke();
  render.drawFaces(mesh);
  noFill();
  stroke(0, 50);
  render.drawEdges(mesh);
  fill(255, 0, 0);
  text(frameRate, 50, 50);
  popMatrix();
  //line(joints[jointType1].getX(), joints[jointType1].getY(), joints[jointType1].getZ(), joints[jointType2].getX(), joints[jointType2].getY(), joints[jointType2].getZ());
}

//draw a ellipse depending on the hand state
void drawHandState(KJoint joint) {
  noStroke();
  handState(joint.getState());
  pushMatrix();
  translate(joint.getX(), joint.getY(), joint.getZ());
  ellipse(0, 0, 70, 70);
  popMatrix();
}

/*
Different hand state
 KinectPV2.HandState_Open
 KinectPV2.HandState_Closed
 KinectPV2.HandState_Lasso
 KinectPV2.HandState_NotTracked
 */

//Depending on the hand state change the color
void handState(int handState) {
  switch(handState) {
  case KinectPV2.HandState_Open:
    fill(0, 255, 0);
    break;
  case KinectPV2.HandState_Closed:
    fill(255, 0, 0);
    break;
  case KinectPV2.HandState_Lasso:
    fill(0, 0, 255);
    break;
  case KinectPV2.HandState_NotTracked:
    fill(100, 100, 100);
    break;
  }
}
