i am trying to make Graph,its almost done…last thing i need to fix,is points positions…i completely dont know why they placing like that…any ideas?
Graph.pde:
ArrayList<Float> arr = new ArrayList<Float>();
GraphView graph = new GraphView(0,0,450,300,arr);
void setup() {
size(600,600);
graph.add(20);
graph.add(10);
graph.add(40);
graph.add(10);
graph.add(20);
graph.add(10);
graph.add(4);
graph.add(1);
graph.add(40);
graph.add(32);
graph.draw();
image(graph.rendered,0,0);
}
void draw() {
graph.onHoverCycle();
}
GraphView.pde:
import java.util.*;
class GraphView {
public PGraphics rendered;
public float width;
public float height;
public float x;
public float y;
public ArrayList<Float> arr = new ArrayList<Float>();
private ArrayList<PVector> value_coords = new ArrayList<PVector>();
private ArrayList<PVector> value_data = new ArrayList<PVector>();
private ArrayList<Integer> vertical = new ArrayList<Integer>();
private ArrayList<PVector> vert_coords = new ArrayList<PVector>();
private ArrayList<Integer> horizontal = new ArrayList<Integer>();
private ArrayList<PVector> horiz_coords = new ArrayList<PVector>();
private int textsize = 0;
private int textoffset = 5;
protected boolean cycleready = false;
public GraphView(float x,float y,float width,float height,ArrayList<Float> arr) {
this.width = width;
this.height = height;
this.x = x;
this.y = y;
this.arr = arr;
vertical.add(0);
vertical.add(1);
}
public void add(float value) {
arr.add(value);
if(!isNull(horizontal,horizontal.size()-1)) {
if(horizontal.size()<width/((textsize+textoffset)*horizontal.size())) {
horizontal.add(horizontal.get(horizontal.size()-1)+1);
} else {
throw new IndexOutOfBoundsException("This version of code does not support that much values!size up your Graph Width or add less values!Seems like this Graph support only "+horizontal.size()+" values!");
}
} else {
horizontal.add(1);
}
if(vertical.get(0)<value) {
int size;
if(value>=5) {
size = 5;
} else {
size = (int)value;
}
vertical = split(size,(int)value);
}
value_data.add(new PVector(value,horizontal.get(horizontal.size()-1)));
vert_coords = new ArrayList<PVector>();
horiz_coords = new ArrayList<PVector>();
value_coords = new ArrayList<PVector>();
for(int i = 1;i < vertical.size()+1;i++) {
vert_coords.add(new PVector(0,i*((this.height-textoffset)/vertical.size())-textsize/2));
}
for(int i = 1;i < horizontal.size();i++) {
if(!isNull(horizontal,i-1)) {
horiz_coords.add(new PVector(i*((this.width-textsize/textoffset)/horizontal.size()),this.height+textsize-textoffset));
}
}
for(int i = 1;i<arr.size();i++) {
if(horiz_coords.size()>0) {
value_coords.add(new PVector(horiz_coords.get(i-1).x,compare(vertical,vert_coords,arr.get(i-1))));
}
if(i >= horiz_coords.size()) {
value_coords.add(new PVector(horiz_coords.get(horiz_coords.size()-1).x,compare(vertical,vert_coords,value)));
}
}
}
public void print() {
println("---DEBUG INFO---");
println("Graph Name:"+this);
println("Graph Coordinates:"+this.x+" "+this.y);
println("Graph Dimensions:"+this.width+" "+this.height);
println("Values Coordinates:"+PVectorArrayToString(value_coords));
println("Values Data:"+PVectorArrayToString(value_data));
println("Lines Coordinates:"+PVectorArrayToString(vert_coords));
println("Collumns Coordinates:"+PVectorArrayToString(horiz_coords));
println("Values:"+arr.toString());
println("Lines:"+vertical.toString());
println("Collumns:"+horizontal.toString());
println("---DEBUG INFO---");
}
public void draw() {
textsize = (int)(this.height/vertical.size()-textoffset*2);
rendered = createGraphics((int)(this.width+textsize+textoffset),(int)(this.height+textsize+textoffset));
rendered.beginDraw();
rendered.rect(x+textsize+textoffset*2,y,x+this.width,y+this.height);
for(int i = 1;i < vertical.size()+1;i++) {
rendered.textSize(textsize);
rendered.fill(0);
rendered.text(vertical.get(i-1).toString(),0,i*((this.height-textoffset)/vertical.size()));
rendered.stroke(200);
rendered.line(x+textsize+textoffset*2,i*((this.height-textoffset)/vertical.size())-textsize/2,x+textsize+textoffset*2+this.width,i*((this.height-PI)/vertical.size())-textsize/2);
vert_coords.add(new PVector(0,i*((this.height-textoffset)/vertical.size())-textsize/2));
}
for(int i = 1;i < horizontal.size()+1;i++) {
rendered.textSize(textsize);
rendered.fill(0);
if(!isNull(horizontal,i-1)) {
rendered.text(horizontal.get(i-1).toString(),i*((this.width-textsize/textoffset)/horizontal.size()),this.height+textsize-textoffset);
}
}
for(int i = 1;i < value_coords.size()+1;i++) {
if(!isNull(value_coords,i)) {
rendered.stroke(0,255,0);
rendered.strokeWeight(3);
rendered.line(value_coords.get(i).x+10,value_coords.get(i).y+10,value_coords.get(i-1).x+10,value_coords.get(i-1).y+10);
}
}
for(int i = 1;i < value_coords.size()+1;i++) {
rendered.fill(0,255,0);
rendered.strokeWeight(1);
rendered.stroke(0);
rendered.rect(value_coords.get(i-1).x+5,value_coords.get(i-1).y+5,10,10,25,25,25,25);
}
rendered.endDraw();
cycleready = true;
this.print();
}
public void onHoverCycle() {
if(cycleready) {
PGraphics graphic = createGraphics((int)this.width,(int)this.height);
graphic.beginDraw();
//graphic.rect(mouseX-25,mouseY-25,50,50);
for(int i = 0;i < value_coords.size();i++) {
PVector vec = (PVector)value_coords.get(i);
if(mouseX<vec.x+15&&mouseX>vec.x+5&&mouseY<vec.y+15&&mouseY>vec.y+5) {
image(rendered,x,y);
String str = "Line:"+(int)value_data.get(i).x+" Collumn:"+(int)value_data.get(i).y;
graphic.fill(0,0,0,127);
float val = ((textsize/3.5)*str.length()+width/10)/1.75;
float val2 = textsize+textoffset;
if(vec.x+val-width/(width/val*PI)<width) {
graphic.rect(vec.x-3-val2,vec.y,val,height/15,25,25,25,25);
graphic.textSize(textsize/3.5);
graphic.fill(255);
graphic.text(str,vec.x+27-val2-(str.length()/textsize+textoffset),vec.y+15);
} else {
graphic.rect(vec.x+25-val2,vec.y,-val,height/15,25,25,25,25);
graphic.textSize(textsize/3.5);
graphic.fill(255);
graphic.text(str,vec.x+5-(5*str.length()+width/10)-val2-(str.length()/textsize+textoffset),vec.y+15);
}
graphic.fill(0,255,255);
graphic.rect(vec.x+5-val2,vec.y+5,10,10,25,25,25,25);
} else {
image(rendered,x,y);
}
}
graphic.endDraw();
image(graphic,x+textsize+textoffset,y);
}
}
private ArrayList<Integer> split(int size,int val) {
ArrayList<Integer> ret = new ArrayList<Integer>();
for(int i = 1;i < size+1;i++) {
ret.add(val*i/size);
}
Collections.reverse(ret);
return ret;
}
private boolean isNull(ArrayList arr,int index) {
boolean ret = false;
try {
Object obj = (Object)arr.get(index);
} catch(NullPointerException e){
ret = true;
} catch(IndexOutOfBoundsException e2) {
ret = true;
}
return ret;
}
public String PVectorArrayToString(ArrayList<PVector> arr) {
final StringBuilder str = new StringBuilder();
str.append("[");
for(int i = 0;i < arr.size();i++) {
str.append("(");
str.append(String.valueOf(arr.get(i).x));
str.append(",");
str.append(String.valueOf(arr.get(i).y));
str.append(")");
if(!(i>=arr.size()-1)) {
str.append(", ");
}
}
str.append("]");
return str.toString();
}

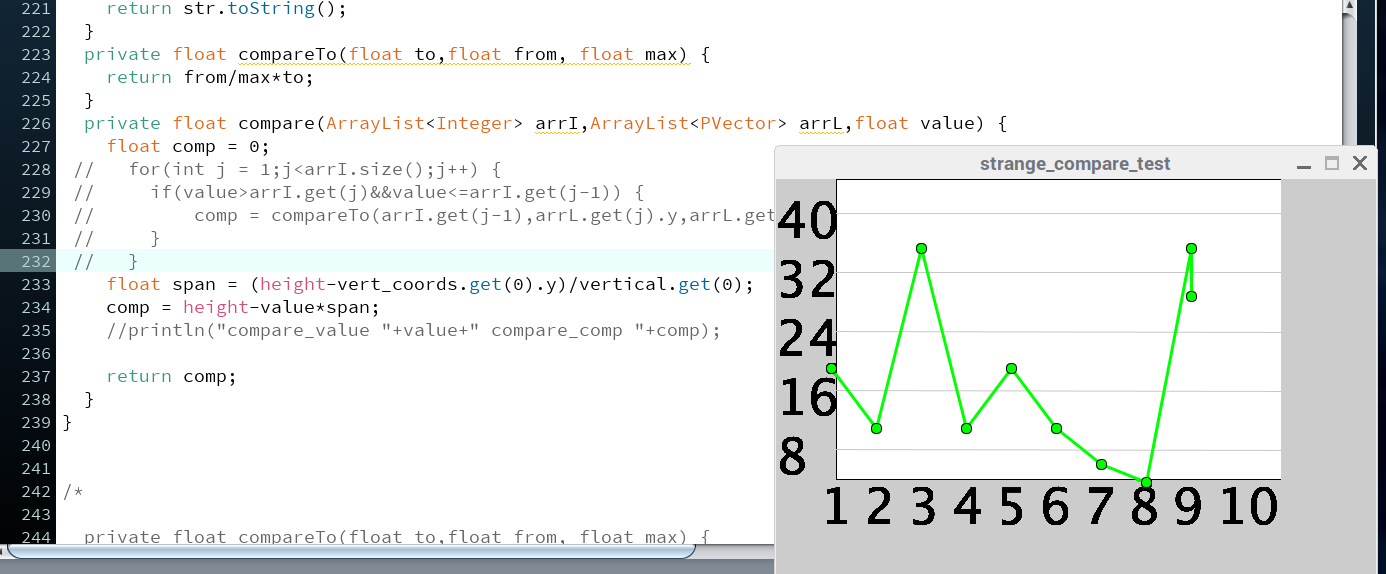

private float compareTo(float to,float from, float max) {
return from/max*to;
}
private float compare(ArrayList<Integer> arr,ArrayList<PVector> arr1,float value) {
float comp = 0;
for(int j = 1;j<arr.size();j++) {
if(value>arr.get(j)&&value<=arr.get(j-1)) {
comp = compareTo(arr.get(j-1),arr1.get(j).y,arr1.get(j-1).y);
}
}
return comp;
}
}

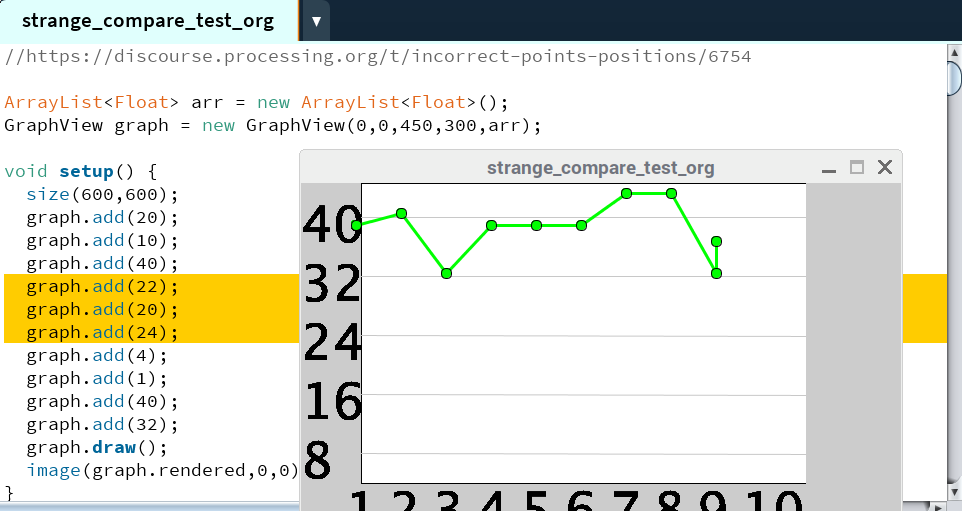

UPD:coordinates for points are setting up in method add()
