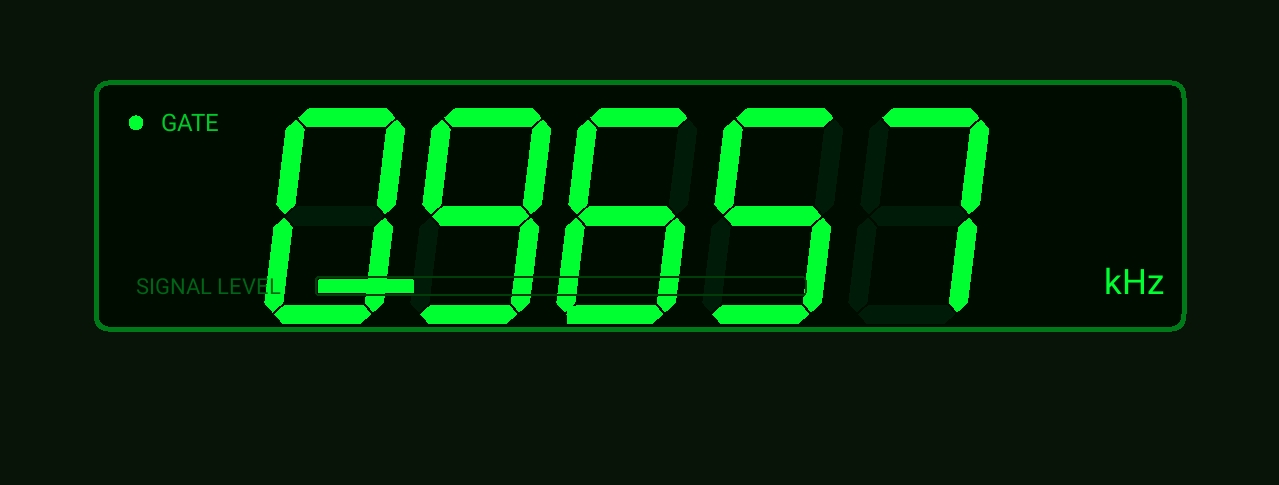

Custom 7- segment display

jafal · July 24, 2026, 7:56pm


import processing.sound.*;

AudioIn mic;
Waveform waveform;
int numSamples = 1024;
float sampleRate = 44100;
float smoothedFreq = 0;

boolean[][] segments = {
  {true,  true,  true,  true,  true,  true,  false},
  {false, true,  true,  false, false, false, false},
  {true,  true,  false, true,  true,  false, true },
  {true,  true,  true,  true,  false, false, true },
  {false, true,  true,  false, false, true,  true },
  {true,  false,  true,  true,  false, true,  true },
  {true,  false,  true,  true,  true,  true,  true },
  {true,  true,  true,  false, false, false, false},
  {true,  true,  true,  true,  true,  true,  true },
  {true,  true,  true,  true,  false, true,  true }
};

void setup() {
  size(displayWidth, displayHeight);
  frameRate(30);

  mic = new AudioIn(this, 0);
  mic.start();

  waveform = new Waveform(this, numSamples);
  waveform.input(mic);
}

void draw() {
  background(10, 20, 10);

  waveform.analyze();

  float totalPeriodsSamples = 0;
  int crossingCount = 0;
  float lastCrossingTime = -1;
  float maxPeak = 0;

  for (int i = 1; i < numSamples; i++) {
    float prev = waveform.data[i - 1];
    float curr = waveform.data[i];

    if (abs(curr) > maxPeak) maxPeak = abs(curr);

    if ((prev >= 0 && curr < 0) || (prev < 0 && curr >= 0)) {
      float fraction = abs(prev) / (abs(prev) + abs(curr));
      float exactCrossingTime = (i - 1) + fraction;

      if (lastCrossingTime != -1) {
        totalPeriodsSamples += (exactCrossingTime - lastCrossingTime);
        crossingCount++;
      }
      lastCrossingTime = exactCrossingTime;
    }
  }

  float frequencyHz = 0;
  if (crossingCount > 0 && totalPeriodsSamples > 0) {
    float avgHalfPeriod = totalPeriodsSamples / crossingCount;
    frequencyHz = sampleRate / (2.0 * avgHalfPeriod);
  }

  if (frequencyHz > 20000) frequencyHz = 20000;
  if (maxPeak < 0.015 || crossingCount < 2) frequencyHz = 0;

  smoothedFreq = lerp(smoothedFreq, frequencyHz, 0.25);

  float boxW = width * 0.85;
  float boxH = height * 0.35;
  float boxX = (width - boxW) / 2;
  float boxY = (height - boxH) / 2;

  stroke(0, 120, 30);
  strokeWeight(5);
  fill(5, 15, 5);
  rect(boxX, boxY, boxW, boxH, 15);

  noStroke();
  if ((frameCount / 6) % 2 == 0 && maxPeak > 0.015) {
    fill(0, 255, 50);
  } else {
    fill(5, 40, 10);
  }
  ellipse(boxX + 40, boxY + 40, 15, 15);
  fill(0, 200, 40);
  textSize(24);
  text("GATE", boxX + 65, boxY + 48);

  float w = boxW * 0.11;
  float h = w * 1.8;
  float spacing = w * 0.22;
  float totalDigitsW = (w * 5) + (spacing * 4);
  float startX = boxX + (boxW - totalDigitsW) / 2;
  float digitsY = boxY + (boxH - h) / 2 + 10;

  int displayVal = int(smoothedFreq);
  int d5 = (displayVal / 10000) % 10;
  int d4 = (displayVal / 1000) % 10;
  int d3 = (displayVal / 100) % 10;
  int d2 = (displayVal / 10) % 10;
  int d1 = displayVal % 10;

  drawSevenSegment(startX, digitsY, w, h, d5);
  drawSevenSegment(startX + (w + spacing), digitsY, w, h, d4);

  drawDecimalDot(startX + (w + spacing) * 2 - (spacing / 2), digitsY + h, w);

  drawSevenSegment(startX + (w + spacing) * 2, digitsY, w, h, d3);
  drawSevenSegment(startX + (w + spacing) * 3, digitsY, w, h, d2);
  drawSevenSegment(startX + (w + spacing) * 4, digitsY, w, h, d1);

  fill(0, 255, 50);
  textSize(35);
  text("kHz", boxX + boxW - 80, boxY + boxH - 35);

  fill(0, 100, 25);
  textSize(22);
  text("SIGNAL LEVEL", boxX + 40, boxY + boxH - 35);

  float barMaxW = boxW * 0.45;
  float barW = map(maxPeak, 0, 0.5, 0, barMaxW);
  barW = constrain(barW, 0, barMaxW);

  stroke(0, 60, 15);
  strokeWeight(2);
  noFill();
  rect(boxX + 220, boxY + boxH - 52, barMaxW, 18, 3);

  noStroke();
  fill(0, 255, 50);
  rect(boxX + 222, boxY + boxH - 50, barW, 14, 2);
}

void drawSevenSegment(float x, float y, float w, float h, int num) {
  float t = w * 0.16;
  float g = 1.5;

  color onColor = color(0, 255, 50);
  color offColor = color(5, 30, 10);

  noStroke();
  pushMatrix();
  translate(x, y);
  shearX(radians(-7));

  fill(segments[num][0] ? onColor : offColor);
  beginShape(); vertex(t + g, 0); vertex(w - t - g, 0); vertex(w - (t/2) - g, t/2); vertex(w - t - g, t); vertex(t + g, t); vertex((t/2) + g, t/2); endShape(CLOSE);

  fill(segments[num][1] ? onColor : offColor);
  beginShape(); vertex(w, t + g); vertex(w, (h/2) - (t/2) - g); vertex(w - (t/2), (h/2) - g); vertex(w - t, (h/2) - (t/2) - g); vertex(w - t, t + g); vertex(w - (t/2), (t/2) + g); endShape(CLOSE);

  fill(segments[num][2] ? onColor : offColor);
  beginShape(); vertex(w, (h/2) + (t/2) + g); vertex(w, h - t - g); vertex(w - (t/2), h - (t/2) - g); vertex(w - t, h - t - g); vertex(w - t, (h/2) + (t/2) + g); vertex(w - (t/2), (h/2) + g); endShape(CLOSE);

  fill(segments[num][3] ? onColor : offColor);
  beginShape(); vertex(t + g, h - t); vertex(w - t - g, h - t); vertex(w - (t/2) - g, h - (t/2)); vertex(w - t - g, h); vertex(t + g, h); vertex((t/2) + g, h - (t/2)); endShape(CLOSE);

  fill(segments[num][4] ? onColor : offColor);
  beginShape(); vertex(t, (h/2) + (t/2) + g); vertex(t, h - t - g); vertex(t/2, h - (t/2) - g); vertex(0, h - t - g); vertex(0, (h/2) + (t/2) + g); vertex(t/2, (h/2) + g); endShape(CLOSE);

  fill(segments[num][5] ? onColor : offColor);
  beginShape(); vertex(t, t + g); vertex(t, (h/2) - (t/2) - g); vertex(t/2, (h/2) - g); vertex(0, (h/2) - (t/2) - g); vertex(0, t + g); vertex(t/2, (t/2) + g); endShape(CLOSE);

  fill(segments[num][6] ? onColor : offColor);
  beginShape(); vertex(t + g, (h/2) - (t/2)); vertex(w - t - g, (h/2) - (t/2)); vertex(w - (t/2) - g, h/2); vertex(w - t - g, (h/2) + (t/2)); vertex(t + g, (h/2) + (t/2)); vertex((t/2) + g, h/2); endShape(CLOSE);

  popMatrix();
}

void drawDecimalDot(float x, float y, float w) {
  float dotSize = w * 0.15;
  fill(0, 255, 50);
  noStroke();
  rect(x, y - dotSize, dotSize, dotSize, 1);
}

svan · July 25, 2026, 12:52am

I am unable to run the demo in Android mode with Processing 4.5.6 on MacOS (M4 Tahoe 26.5) and get this error message:

Build folder: /var/folders/x2/hwxvmv9s6t16_tkw9tgmbp040000gn/T/android737348970227068550sketch
Exception in thread "Thread-54" java.lang.NullPointerException: Cannot read the array length because "list" is null
	at processing.app.Library.wrapFiles(Library.java:429)
	at processing.app.Library.getApplicationExports(Library.java:439)
	at processing.mode.android.AndroidBuild.copyImportedLibs(AndroidBuild.java:839)
	at processing.mode.android.AndroidBuild.createAppModule(AndroidBuild.java:481)
	at processing.mode.android.AndroidBuild.createProject(AndroidBuild.java:262)
	at processing.mode.android.AndroidBuild.build(AndroidBuild.java:223)
	at processing.mode.android.AndroidMode.handleRunDevice(AndroidMode.java:294)
	at processing.mode.android.AndroidEditor$17.run(AndroidEditor.java:421)

I get the same error message if I run the following reference code in Android mode:

import processing.sound.*;

void setup() {
  Sound.list();
}

I am using a Samsung A8 tablet. There is no microphone connected to it. What type of device are you running the code on and does it have a microphone attached to it (or use an internal microphone)?

Addendum:

Runs without error in Java mode. Numbers change if I add a microphone.

glv · July 25, 2026, 2:10am

Cool beans!

A440 (pitch standard) - Wikipedia

I got it to work on my Android with Processing 4.5.6 and Processing 4.3.4 with Sound Library 2.3.1 and applying necessary permissions for microphone.

:)

jafal · July 25, 2026, 2:55am

My tablet android 8 the sketch works without errors on APDE 5.1

jafal · July 25, 2026, 2:56am

@glv As always you are creative

svan · July 25, 2026, 5:15am

I finally got it to run in Windows 11. Error messages from Processing 4.5.6 were helpful. I was referred to Examples/Libraries/Sound/IO/AudioInputAndroid. Based on these suggestions I added an initialize function and microphone permissions as shown below:

Modified source code:

import processing.sound.*;

AudioIn mic;
Waveform waveform;

AudioIn input;
Amplitude loudness;

int numSamples = 1024;
float sampleRate = 44100;
float smoothedFreq = 0;

boolean[][] segments = {
  {true,  true,  true,  true,  true,  true,  false},
  {false, true,  true,  false, false, false, false},
  {true,  true,  false, true,  true,  false, true },
  {true,  true,  true,  true,  false, false, true },
  {false, true,  true,  false, false, true,  true },
  {true,  false,  true,  true,  false, true,  true },
  {true,  false,  true,  true,  true,  true,  true },
  {true,  true,  true,  false, false, false, false},
  {true,  true,  true,  true,  true,  true,  true },
  {true,  true,  true,  true,  false, true,  true }
};

void setup() {
  size(displayWidth, displayHeight);
  frameRate(30);
    if (hasPermission("android.permission.RECORD_AUDIO")) {
    initialize(true);
  } else {
    requestPermission("android.permission.RECORD_AUDIO", "initialize");
  }
 // input = new AudioIn(this, 0);
 // input.start();

  waveform = new Waveform(this, numSamples);
  waveform.input(input);
}

void initialize(boolean granted) {
  if (!granted) {
    return;
  }

  // Create an Audio input and grab the 1st channel
  input = new AudioIn(this, 0);

  // Begin capturing the audio input
  input.start();
  // start() activates audio capture so that you can use it as
  // the input to live sound analysis, but it does NOT cause the
  // captured audio to be played back to you. if you also want the
  // microphone input to be played back to you, call
  //    input.play();
  // instead (be careful with your speaker volume, you might produce
  // painful audio feedback. best to first try it out wearing headphones!)

  // Create a new Amplitude analyzer
  loudness = new Amplitude(this);

  // Patch the input to the volume analyzer
  loudness.input(input);
}

void draw() {
  background(10, 20, 10);

  waveform.analyze();

  float totalPeriodsSamples = 0;
  int crossingCount = 0;
  float lastCrossingTime = -1;
  float maxPeak = 0;

  for (int i = 1; i < numSamples; i++) {
    float prev = waveform.data[i - 1];
    float curr = waveform.data[i];

    if (abs(curr) > maxPeak) maxPeak = abs(curr);

    if ((prev >= 0 && curr < 0) || (prev < 0 && curr >= 0)) {
      float fraction = abs(prev) / (abs(prev) + abs(curr));
      float exactCrossingTime = (i - 1) + fraction;

      if (lastCrossingTime != -1) {
        totalPeriodsSamples += (exactCrossingTime - lastCrossingTime);
        crossingCount++;
      }
      lastCrossingTime = exactCrossingTime;
    }
  }

  float frequencyHz = 0;
  if (crossingCount > 0 && totalPeriodsSamples > 0) {
    float avgHalfPeriod = totalPeriodsSamples / crossingCount;
    frequencyHz = sampleRate / (2.0 * avgHalfPeriod);
  }

  if (frequencyHz > 20000) frequencyHz = 20000;
  if (maxPeak < 0.015 || crossingCount < 2) frequencyHz = 0;

  smoothedFreq = lerp(smoothedFreq, frequencyHz, 0.25);

  float boxW = width * 0.85;
  float boxH = height * 0.35;
  float boxX = (width - boxW) / 2;
  float boxY = (height - boxH) / 2;

  stroke(0, 120, 30);
  strokeWeight(5);
  fill(5, 15, 5);
  rect(boxX, boxY, boxW, boxH, 15);

  noStroke();
  if ((frameCount / 6) % 2 == 0 && maxPeak > 0.015) {
    fill(0, 255, 50);
  } else {
    fill(5, 40, 10);
  }
  ellipse(boxX + 40, boxY + 40, 15, 15);
  fill(0, 200, 40);
  textSize(24);
  text("GATE", boxX + 65, boxY + 48);

  float w = boxW * 0.11;
  float h = w * 1.8;
  float spacing = w * 0.22;
  float totalDigitsW = (w * 5) + (spacing * 4);
  float startX = boxX + (boxW - totalDigitsW) / 2;
  float digitsY = boxY + (boxH - h) / 2 + 10;

  int displayVal = int(smoothedFreq);
  int d5 = (displayVal / 10000) % 10;
  int d4 = (displayVal / 1000) % 10;
  int d3 = (displayVal / 100) % 10;
  int d2 = (displayVal / 10) % 10;
  int d1 = displayVal % 10;

  drawSevenSegment(startX, digitsY, w, h, d5);
  drawSevenSegment(startX + (w + spacing), digitsY, w, h, d4);

  drawDecimalDot(startX + (w + spacing) * 2 - (spacing / 2), digitsY + h, w);

  drawSevenSegment(startX + (w + spacing) * 2, digitsY, w, h, d3);
  drawSevenSegment(startX + (w + spacing) * 3, digitsY, w, h, d2);
  drawSevenSegment(startX + (w + spacing) * 4, digitsY, w, h, d1);

  fill(0, 255, 50);
  textSize(35);
  text("kHz", boxX + boxW - 80, boxY + boxH - 35);

  fill(0, 100, 25);
  textSize(22);
  text("SIGNAL LEVEL", boxX + 40, boxY + boxH - 35);

  float barMaxW = boxW * 0.45;
  float barW = map(maxPeak, 0, 0.5, 0, barMaxW);
  barW = constrain(barW, 0, barMaxW);

  stroke(0, 60, 15);
  strokeWeight(2);
  noFill();
  rect(boxX + 220, boxY + boxH - 52, barMaxW, 18, 3);

  noStroke();
  fill(0, 255, 50);
  rect(boxX + 222, boxY + boxH - 50, barW, 14, 2);
}

void drawSevenSegment(float x, float y, float w, float h, int num) {
  float t = w * 0.16;
  float g = 1.5;

  color onColor = color(0, 255, 50);
  color offColor = color(5, 30, 10);

  noStroke();
  pushMatrix();
  translate(x, y);
  shearX(radians(-7));

  fill(segments[num][0] ? onColor : offColor);
  beginShape(); vertex(t + g, 0); vertex(w - t - g, 0); vertex(w - (t/2) - g, t/2); vertex(w - t - g, t); vertex(t + g, t); vertex((t/2) + g, t/2); endShape(CLOSE);

  fill(segments[num][1] ? onColor : offColor);
  beginShape(); vertex(w, t + g); vertex(w, (h/2) - (t/2) - g); vertex(w - (t/2), (h/2) - g); vertex(w - t, (h/2) - (t/2) - g); vertex(w - t, t + g); vertex(w - (t/2), (t/2) + g); endShape(CLOSE);

  fill(segments[num][2] ? onColor : offColor);
  beginShape(); vertex(w, (h/2) + (t/2) + g); vertex(w, h - t - g); vertex(w - (t/2), h - (t/2) - g); vertex(w - t, h - t - g); vertex(w - t, (h/2) + (t/2) + g); vertex(w - (t/2), (h/2) + g); endShape(CLOSE);

  fill(segments[num][3] ? onColor : offColor);
  beginShape(); vertex(t + g, h - t); vertex(w - t - g, h - t); vertex(w - (t/2) - g, h - (t/2)); vertex(w - t - g, h); vertex(t + g, h); vertex((t/2) + g, h - (t/2)); endShape(CLOSE);

  fill(segments[num][4] ? onColor : offColor);
  beginShape(); vertex(t, (h/2) + (t/2) + g); vertex(t, h - t - g); vertex(t/2, h - (t/2) - g); vertex(0, h - t - g); vertex(0, (h/2) + (t/2) + g); vertex(t/2, (h/2) + g); endShape(CLOSE);

  fill(segments[num][5] ? onColor : offColor);
  beginShape(); vertex(t, t + g); vertex(t, (h/2) - (t/2) - g); vertex(t/2, (h/2) - g); vertex(0, (h/2) - (t/2) - g); vertex(0, t + g); vertex(t/2, (t/2) + g); endShape(CLOSE);

  fill(segments[num][6] ? onColor : offColor);
  beginShape(); vertex(t + g, (h/2) - (t/2)); vertex(w - t - g, (h/2) - (t/2)); vertex(w - (t/2) - g, h/2); vertex(w - t - g, (h/2) + (t/2)); vertex(t + g, (h/2) + (t/2)); vertex((t/2) + g, h/2); endShape(CLOSE);

  popMatrix();
}

void drawDecimalDot(float x, float y, float w) {
  float dotSize = w * 0.15;
  fill(0, 255, 50);
  noStroke();
  rect(x, y - dotSize, dotSize, dotSize, 1);
}

Sketch permissions added:

<uses-permission android:name="android.permission.FOREGROUND_SERVICE_MICROPHONE"/>
    <uses-permission android:name="android.permission.MANAGE_DEVICE_POLICY_MICROPHONE"/>
    <uses-permission android:name="android.permission.RECORD_AUDIO"/>

jafal · July 25, 2026, 5:33am

Excellent work. The idea is not about reading the frequency; the idea is to design a 7-segment display without using special files, font libraries, or character libraries.

Topic		Replies	Views
Android MIDI sequencer with Processing interface Processing for Android	98	5256	July 31, 2018
Sound library no longer works? Processing for Android	30	1620	December 4, 2020
From java to android Processing for Android homework	32	1457	November 9, 2020
A working sound playing app sketch - works as of May 27 2018 Processing for Android	18	2760	August 19, 2018
Feedback on expandible digit display Coding Questions	7	397	January 5, 2020

Custom 7- segment display

Related topics
